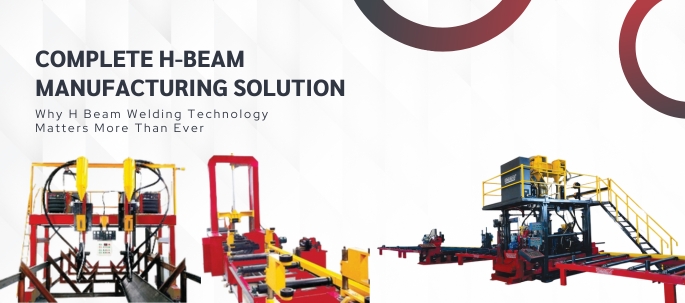

The Complete H Beam Manufacturing Solution: Why One Size Never Fits All
Last month, a steel fabricator from Haryana called us with a challenge. They had a major infrastructure contract requiring 2,500 H beams in various sizes, but their current welding setup could barely handle 15 beams per shift. "We need serious production capability," the owner said, "but we don't know which welding machine configuration makes sense for our operation."
This conversation happens weekly at Mansoori Weldarc. After 25+ years of manufacturing welding equipment, we've learned that successful H-beam production isn't just about having a welding machine – it's about having the right welding machine configuration for your specific requirements.
That's why we developed four distinct H beam welding machine solutions: PTW Machine (Portal Type Welding), Horizontal Tack Welding, Vertical Tack Welding, and Gantry Welding systems. Each serves different production needs, and understanding these differences can transform your manufacturing capabilities.
Why H Beam Welding Technology Matters More Than Ever
India's infrastructure boom isn't slowing down. From metro rail projects to industrial complexes, from high-rise construction to bridge building – quality H-beams are the backbone of modern construction.
But here's what many fabricators discover too late: manual H-beam welding simply cannot deliver the quality, consistency, and volume today's projects demand. Welding a structural beam isn't like welding a simple joint – it requires precise heat control, consistent penetration, and dimensional accuracy that manual processes struggle to achieve consistently.
Modern H beam welding machine solves these challenges while dramatically improving productivity. The question isn't whether to automate – it's which automation approach best fits your operation.
Understanding the Four Pillars of H-Beam Production
Let us walk you through each welding system we manufacture and explain when each solution makes the most sense.
1. PTW H-Beam Welding Machine: The Precision Powerhouse
Our Portal Type Welding (PTW) system represents the pinnacle of H-beam manufacturing technology. This isn't just a welding machine – it's a complete production system designed for serious volume manufacturing.
Technical Capabilities:
- Rail Gauge: 4000mm for handling large beams
- Web Height: Up to 2000mm capacity
- Flange Width: 200-800mm range covers most standard applications
- Work-piece Length: 4000-15000mm (customizable to user requirements)
- Welding Process: Submerged Arc Welding Machine (SAW) for superior quality
The PTW Machine configuration excels where precision and volume matter most. The portal structure provides rigid support for heavy beams while maintaining welding accuracy across the entire length. Submerged Arc Welding Machine (SAW) delivers deep penetration welds with excellent mechanical properties.
Best Applications:
- High-volume production facilities
- Large infrastructure projects requiring consistent quality
- Heavy-duty beams for industrial construction
- Operations requiring minimal operator intervention
2. Horizontal Tack Welding Machine: Foundation of Quality
Before any H-beam receives its final welds, proper tack welding ensures dimensional accuracy and prevents distortion during the welding process. Our horizontal tack welding system handles this critical first step with precision.
Key Specifications:
- Rail Gauge: 4000mm
- Web Height: 2000mm capacity
- Flange Width (Y): 200-800mm
- Process: SAW technology for consistent tack quality
Horizontal positioning offers several advantages for tack welding operations. Gravity assists in maintaining proper fit-up, operators have better access for quality inspection, and the horizontal orientation naturally supports beam geometry during the tacking process.
Ideal For:
- Pre-assembly operations before final welding
- Mixed production requiring flexible positioning
- Quality-critical applications where tack precision matters
- Operations integrating with automated final welding systems
3. Vertical Tack Welding Machine: Space-Efficient Solution
When floor space is limited but quality cannot be compromised, vertical tack welding provides an efficient alternative. This configuration maximizes welding capability within a smaller footprint.
The vertical orientation offers unique advantages for certain applications. Web plates can be positioned and tacked efficiently, and the compact design allows integration into existing production layouts without major facility modifications.
Optimal Applications:
- Facilities with limited floor space
- Job shops handling diverse beam sizes
- PEB Structure fabrication
- Integration with existing horizontal welding systems
4. Gantry Welding Machine: Ultimate Flexibility
Our gantry welding system brings welding capability to the work rather than bringing work to a fixed welding station. This mobility transforms how large fabrication operations approach H-beam production.
The gantry design allows welding of extremely long beams or multiple beams positioned in parallel. For operations handling oversized structural members or high-volume production runs, gantry systems provide unmatched flexibility.
Perfect For:
- Shipbuilding applications requiring long beams
- Bridge construction with oversized members
- High-volume production with parallel processing
- PEB Structure Fabrication
The SAW Advantage: Why Process Selection Matters
All our H-beam welding machines utilise Submerged Arc Welding Machine (SAW) technology, and there are compelling reasons for this choice.
SAW delivers superior weld quality compared to other automated processes. The flux protects the weld pool from atmospheric contamination, resulting in clean, strong welds with excellent mechanical properties. Heat input control prevents distortion while achieving full penetration welds essential for structural applications.
Productivity benefits are equally impressive. Submerged Arc Welding Machine operates at higher deposition rates than other processes, reducing welding time per beam. The automated nature eliminates operator skill variation – every weld meets specification regardless of which shift produces it.
Real-World Performance: What Our Customers Achieve
Infrastructure Project Success
A major infrastructure contractor in Maharashtra needed to produce 3,200 H-beams for a metro rail project. Quality requirements were strict – all welds had to meet AWS D1.1 standards with full penetration and minimal distortion.
Using our PTW H-beam welding machine system, they achieved:
- Production Rate: 45 beams per shift (vs. 12 with manual welding)
- Quality Consistency: 99.2% pass rate on radiographic testing
- Delivery Performance: Project completed 3 weeks ahead of schedule
- Cost Reduction: 35% lower production cost per beam
Steel Fabrication Transformation
A steel fabrication company in Gujarat integrated our horizontal and vertical tack welding systems with a gantry welding machine for final assembly. This combination allowed them to handle projects ranging from small commercial buildings to large industrial structures.
Results after 18 months:
- Capacity Increase: 280% improvement in monthly beam production
- Quality Improvement: Customer complaint rate dropped to near zero
- Operator Efficiency: Same workforce handling 3x production volume
- New Market Access: Qualified for large infrastructure bids previously impossible
Choosing the Right Configuration for Your Needs
Selecting the optimal H-beam welding machine configuration depends on several factors specific to your operation:
Production Volume Considerations
- High Volume (>100 beams/day): PTW systems deliver the automation and speed needed for serious production requirements.
- Medium Volume (25-100 beams/day): Horizontal tack welding combined with gantry final welding provides excellent flexibility.
- Variable Volume (<25 beams/day): Vertical tack welding offers cost-effective quality improvement for smaller operations.
Facility Layout Factors
- Large Floor Space Available: PTW Machine or gantry systems utilise space efficiently for maximum productivity.
- Limited Space: Vertical configurations maximise capability within constrained areas.
- Existing Equipment Integration: Horizontal and vertical tack welding systems integrate well with current operations.
Quality Requirements
- Structural/Infrastructure: PTW Machines with full SAW automation ensure consistent compliance with demanding specifications.
- Commercial Construction: Horizontal or gantry systems provide required quality with operational flexibility.
- General Fabrication: Any of our systems dramatically improves quality over manual welding methods.
The Mansoori Weldarc Advantage
25+ Years of PEB Structure Fabrication
Our experience manufacturing plasma cutters, laser cutting systems, and welding equipment gives us unique insight into what works in real production environments. We don't just build welding machines – we engineer complete solutions for our customers' success.
Heavy-Duty Construction That Lasts
Indian manufacturing conditions demand robust equipment. Our H-beam welding machines feature heavy-duty construction designed for continuous operation in demanding environments. Quality components, proper engineering, and attention to detail ensure years of reliable production.
Local Support That Matters
When production stops, you need support immediately. Our local service team understands your challenges and responds quickly. No international shipping delays or time zone complications – just reliable support when you need it.
Customization Capability
Every operation has unique requirements. We customise work-piece length capacity, integrate with existing material handling systems, and modify configurations to match your specific production needs.
Integration for Complete Solutions
The real power of our H-beam welding machine line becomes apparent when systems work together. A typical complete line might include:
- Vertical Tack Welding for pre-assembly
- Horizontal Tack Welding for critical joints
- PTW Final Welding for high-volume production
- Gantry Welding for oversized or specialty beams
This integration allows handling any project requirement while maintaining consistent quality and maximizing productivity.
Quality Standards and Certifications
Our H-beam welding machines help customers meet the most demanding quality standards:
- AWS D1.1 Structural Welding Code compliance
- IS 2062 Indian standard for structural steel
- Quality control systems for consistent production
- Documentation capabilities for project traceability
ROI Analysis: The Numbers That Matter
Initial Investment Consideration
Quality H-beam welding machine systems require significant upfront investment. However, consider the complete economic picture:
- Labor Cost Reduction: Automated systems reduce skilled welder requirements while improving output per operator.
- Quality Cost Avoidance: Consistent quality eliminates rework, reduces inspection time, and prevents field problems.
- Productivity Gains: 3-5x production improvement over manual methods accelerates project completion and cash flow.
- Capacity Expansion: Automated systems enable bidding on larger projects previously impossible with manual methods.
Typical Payback Periods
Based on customer installations:
- High-volume operations: 18-24 months
- Medium-volume operations: 24-36 months
- Quality-critical operations: Often justified by quality improvements alone
Future-Proofing Your Investment
Infrastructure demand isn't decreasing. Quality requirements continue rising. Labor availability and costs create ongoing challenges. H-beam welding machine automation addresses all these trends while positioning your operation for long-term success.
Modern systems also provide data collection capabilities supporting Industry 4.0 initiatives. Production tracking, quality monitoring, and performance optimization become possible with automated systems.
Making the Decision
Successful PEB structure fabrication requires the right combination of technology, capability, and support. Whether you need the high-volume capability of
systems, the flexibility of gantry welding, or the space efficiency of vertical configurations, we have proven solutions.
The question isn't whether to automate H-beam welding – competitive pressures and quality demands make automation inevitable. The question is which specific configuration best positions your operation for current and future success.
Ready to transform your H-beam manufacturing capability? Contact Mansoori Weldarc India Pvt. Ltd. a leading peb structure manufacturer, to discuss how our complete line of H beam welding machines can solve your production challenges, improve your quality, and position your operation for sustainable growth. Our technical team will analyze your specific requirements and recommend the optimal system configuration for your applications.
