Enclosed Table Type

✔ Safety and quality in parellel

✔ Low power-consumption and high efficiency

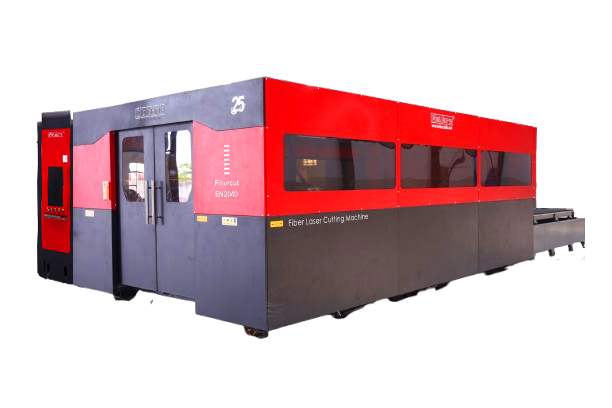

W SERIES | FIBER LASER CUTTING MACHINE

Overview

Here’s an overview of Weldarc’s Enclosed Type Fiber Laser Metal Cutting Machine. The machine features a fully enclosed safety design to ensure maximum operator protection while maintaining high productivity standards. It is equipped with an exchangeable dual-bed system for faster loading and unloading, minimizing downtime and maximizing output efficiency.
With configurations ranging from 1.5 kW to 30 kW, these machines are designed to deliver precision cutting on Mild Steel, Stainless Steel, Aluminium, and other metals. Built with imported high-efficiency laser sources, rugged steel frames, advanced motion systems, and CNC control systems (such as Hypcut or CypCut), they offer reliable, high-performance, and low-maintenance operation.
With over 25+ years of experience, we’ve built a name for reliability, speed, and service that actually shows up when it counts. We’ve helped over 1,000+ businesses across India level up their cutting game with high-performance Metal laser cutting machines for cutting MS, SS, brass, aluminium etc.
Built in Faridabad. Trusted Across India.
Mansoori Weldarc is a leading manufacturer of high-performance fiber laser metal cutting machines based in Faridabad. We operate a fully integrated in-house manufacturing facility spanning over 50,000 sq. mtr., equipped with a complete fabrication unit, advanced VMC machines, and dedicated assembly and testing divisions.

Applicable Materials

Specially used for cutting carbon steel,stainless steel,galvanized steel,elctrolytic zinc-coated steel,silicon steel, brass and red copper and other kinds of thin metal sheets (material and thickness are related to laser type).

Specifications

Technical Parameters

Name	Data
Feature	Enclosed Table Type Fiber Laser Cutting Machine
Max. Acceleration	1.0 G
Laser Power	1.5Kw to 30Kw
Laser Head	BOCI/ Raytools
Laser Type	IPG/ Raycus/ MAX (Fiber Laser Source)
Control System	Cypcut or Hypcut CNC with CAD/CAM Integration
Cutting Material	Mild Steel, Stainless Steel, & other Metals
Cutting Thickness	MS (0.5 - 70mm) (Depends on material)
Software Feature	Arc - Scan, Edge Detection, Breakpoint Resume
Cooling	Water - Cooled Chiller
Working Area Standard	1530X3150mm, 2050X4150mm, 2050X6550mm, 2550X6550mm
Optional Variants	Sheet & Tube Combo, Single Bed, Exchange Bed & Pipe Cutting

Download the brochure to access complete product details, technical specifications, and features.

Download PDF

If you have any question or would like to book a session please contact us.

Get In Touch

Over 25+ years experience & knowledge we are dedicated to provide the best & economical solutions to our customers.

We proudly serve pan India, from metro cities to growing towns ensuring seamless service and support in every corner of the country.
