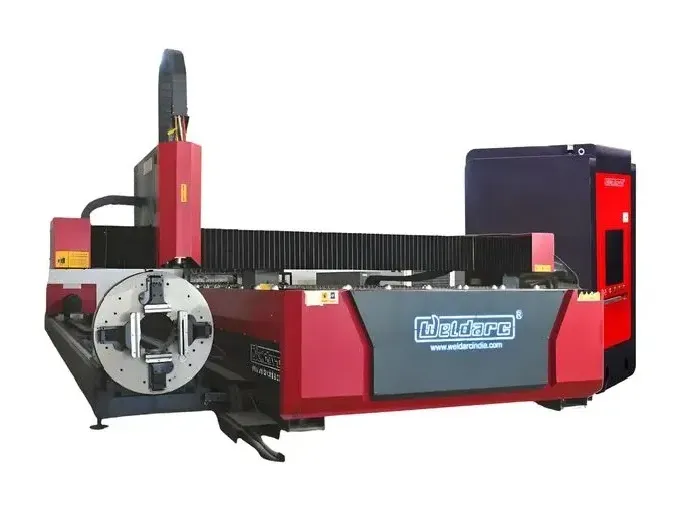

OPEN TYPE PLATES & PIPES FIBER LASER CUTTING MACHINE
OPEN TYPE PLATES & PIPES FIBER LASER CUTTING MACHINE
Characteristics
- With humanized design,and practical user experience.
- The flexible moving control system makes cutting more simply.
- German/Xy rack and pinion, rail from Taiwan Hiwin, servo motor from Japan Yaskawa makes the performance more stable.
- Specially used for cutting carbon steel,stainless steel,galvanized steel,elctrolytic zinc-coated steel,silicon steel, brass and red copper and other kinds of thin metal sheets (material and thickness are related to laser type).
Applicable Materials
Specifications
| Name | Data |
|---|---|
| Model | Fiber Cut - 1530 |
| Effective Cutting Width (mm) | 1500 x 3000 |
| Overall Size (mm) | 5020 x 3770 x 1650 |
| Total Weight (kg) | 4500 |
Technical Parameters
| Name | Data |
|---|---|
| Max. Cutting Speed | 100 m/min |
| Max. Acceleration | 1.0 G |
| X/Y Positioning Accuracy | 0.05 mm/m |
| X/Y Repeated Positioning Accuracy | ±0.03 mm |
| Operating Voltage | 415V/50Hz |
| Laser Power | 500W-2000W |
| Machine Running Temperature | 0°C-40°C |
| Operating Voltage | 415V/50Hz |
| Machine Running Humidity | <90%< /td> |
| Transmission | Precise rack and pinion |
